The Multisol is our most advanced brine saturator, built for large-scale, automated production. It delivers up to 10,000 litres per hour within a 30,000L GRP tank, combining high capacity with durability and efficiency. Real-time performance updates are provided via a dedicated web portal, SMS and email alerts, helping to optimize output and reduce downtime.

Fully customizable to your operational needs, the Multisol is supported by our end-to-end service—from design and installation to on-site training and ongoing servicing needs. Your facility can begin brine production within hours of commissioning, and with its robust engineering, the Multisol ensures reliable, cost-effective operation for years to come.

• Up to 30,000L capacity in a single Glass Reinforced Plastic (GRP) Tank (can add modular tanks to increase capacity)
• Automated brine production up to 10,000L/hr
• 20,000L/hr saturator pump with AK brine seal
• 2-way remote control with dedicated web portal, sms and email alarm/report system
• Siemens S7-1200 controller with HMI7″ designed to operate to -25’C
• External panel for button access and ID control station
• JUMO brine concentration sensor
• GEMU digital flowmeter
• Georg Fischer control valves
• Spreader hosing and connector
• Filters and debris collector
• Trace Heating System
• Tank level measurement
• HDPE control cabinet with work light

Additional features enable users to maximise the benefits of onsite brine production:

• High and low level salt sensor
• Backflow prevention system
• Inspection ladder
• Automated opening Lid
• Salt loading grid
• Full automation (automated control valves)
• Spreader level shut-off cable
• Breakaway hose assembly and valves
• Additional GRP skin
• Ancillary Fresh Water / Brine Storage Tank
• Rainwater Harvesting System
• Automated salt loading system

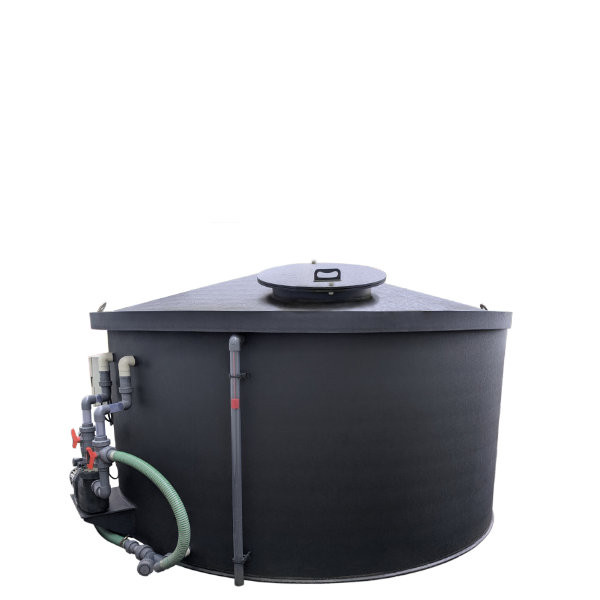

The Peacock Ecosol Saturator offers a simple and cost-effective method for the small scale production of liquid brines. The internal saturator tank holds salt and the external tank holds water. When the pump is activated, two are mixed together to produce a brine to your desired concentration, which can then be pumped directly to your sprayer or pre-wet spreader.

The tanks can be easily cleaned out following the accumulation of insoluble / debris, so any type of salt can be used to produce brine. To minimise cleaning times and maximise efficiency of operation, Peacock would always recommend using Marine De-Icing Salt with a purity of 99%.

• Available in 5,000L or 10,000L

• In-line brine concentration sensor

• Removeable lid with view hatch

• Spreader Shut-Off Cable – Auto pump shutoff when spreader tank is full

• Level Measurement – Mechanical device to indicate tank volume

• Concentration Measurement – Physical analysis of brine strength

• Dual Skin Tank – Additional protection from external damage

• Customisable to site and application

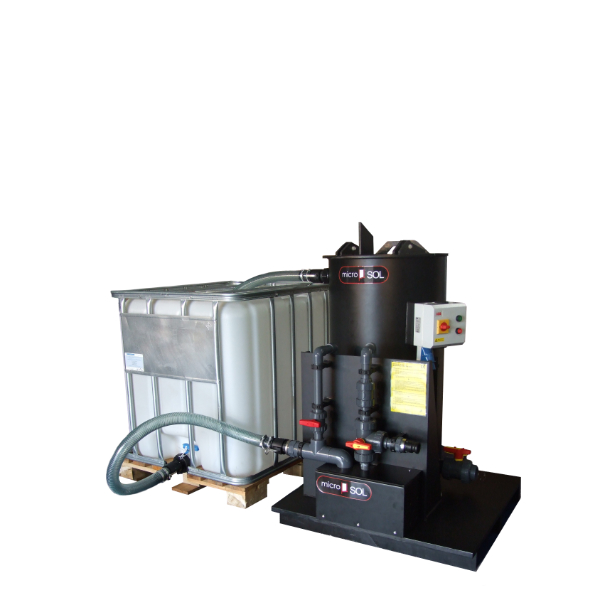

The Peacock 1,000L Microsol Saturator, designed and manufactured in the UK, provides a simple, cost-effective solution for small-scale brine production. Ideal for temporary use or low-demand applications like cycleways and footpaths, it connects to an IBC storage tank via cam-lock fixings. The saturator is filled with salt, while the IBC holds water. An integrated pump mixes them into a brine solution, with strength adjustable via a refractometer by adding more salt or water.

As it isn’t permanently attached, the Microsol can fill multiple IBCs, allowing brine stockpiling for peak demand. It can be loaded with tonne bags via forklift or manually with bagged salt. While any salt type is usable, Peacock recommends 99% pure Marine De-Icing Salt to minimise cleaning and optimise efficiency.

• Easily filled - salt hopper has a large diameter dump valve
• Easily detached from the tank / IBC
• Easily moved (skid mounted)
• Easily cleaned - especially if white de-icing salt is used
• Centrifugal pump basket filter prevents particles ingress and pump failure
• Saturator capacity 300kg
• Tank capacity - varies on size av 1000L
• 30-45 minute production
• Designed and made in the UK
